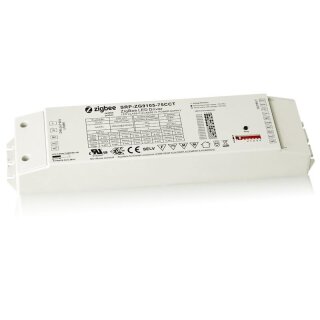

The SRP-ZG9105-75W-CCT is a UL & ENEC approved 75W constant current RF LED dimmable driver with 100-277VAC wide input and 2 channels PWM output. The output current is settable from 250mA to 1500mA by DIP switch on the driver. The driver is designed with ZigBee 3.0 control interface and can pair to ZigBee network and be controlled from your controller or hub interface. The driver is compatible with universal ZigBee gateway or coordinator. In addition, the ZigBee device support TouchLink commissioning to bind ZigBee remotes directly and controlled by the remotes, it is able to control tunable white LED lighting. With over voltage, over temperature, short circuit protection and IP20 rating, the LED driver is reliable and suitable for indoor use. UL and ENEC certification ensures high safety performance of the driver to be used worldwide.
The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.
Key Features
- 75W ZigBee LED dimmable driver
- UL and ENEC certification
- ZigBee 3.0 control interface
- Can pair to ZigBee network and be controlled from your controller or hub interface
-
- Support TouchLink commissioning to bind ZigBee remotes directly and controlled by the remotes
-
- Can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink
- Supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes
- Universal input 100-277VAC
- Constant current output, 4 channels PWM output
- Output current adjustable from 250mA to 1500mA by DIP switch on the driver
- Current accuracy < ±5%
- Standby power consumption < 0.5W
- Built-in active PFC function
- Power factor > 0.96, efficiency > 87%
- Smooth and deep dimming to 0.1%, flicker free
- To control tunable white LED lighting
- Over current protection, over heat protection, short circuit protection
